  • URAL 32552-3020-79

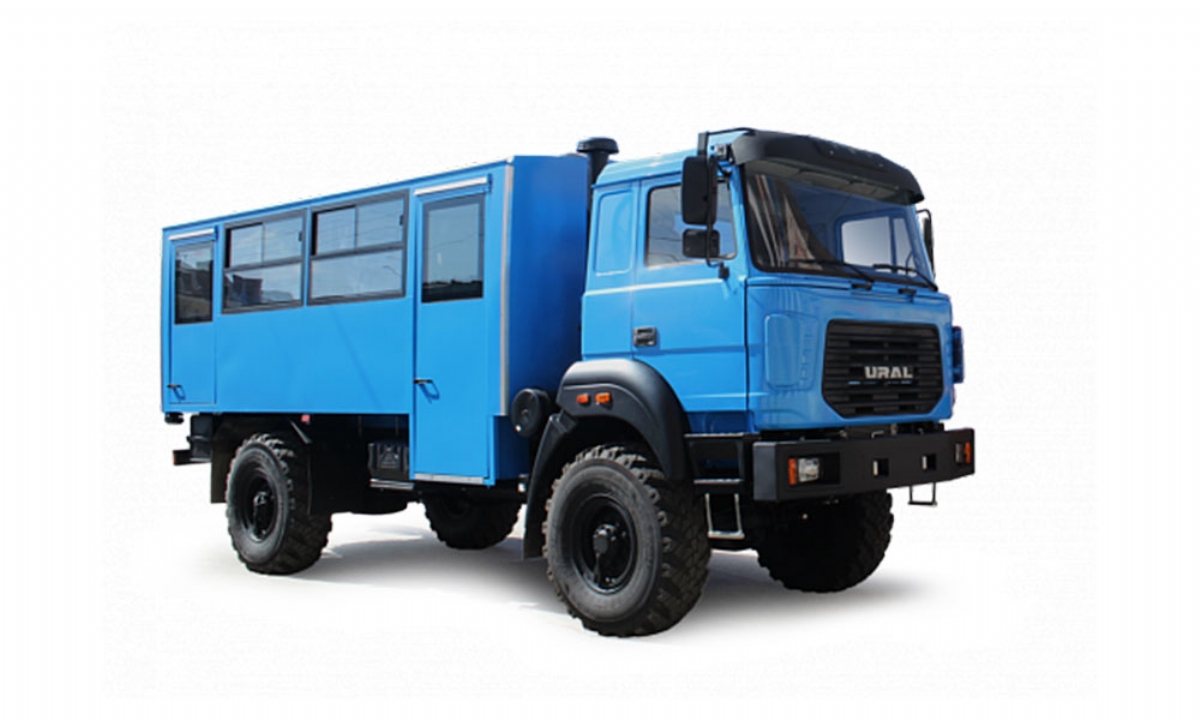

URAL 32552-3020-79

Crew bus is designed to transport passengers and shift teams on all types of roads and terrain.

Designation32552-3020-79
Wheel arrangement4x4
Curb weight, kg9545
GVW, kg13800
Gross vehicle weight distribution, per front axle, kg5800
Gross vehicle weight distribution, per rear axle, kg8000
Cab typeabove engine, two seats
Sleeperno
Number of seats for passengers in the van body14
Engine typeDiesel, 4-stroke, turbocharged, in-line
Displacement, lt6,65
Net power, HP238
Maximum RPM, min-12300
Maximum torque, kgf*m107
Engine speed at maximum torque, min-11300-1600
Gearboxmechanical, 5 gears
Transfer boxAutomobile Plant URAL JSC, two-speed, with interaxle differential lock (high gear – 1,04; low gear – 2,15)
Drive axlesAutomobile Plant URAL JSC, ratio 6.77
Brake drivepneumatic
Starting preheater14ТС-10Е4
Fuel tank capacity, liters300
Maximum speed, km/h90
Tires14.00-20
Overall truck dimensions, mm8180х2500х3475
Configuration
  • mounting the spare wheel on the rear side of the van body
  • bulkhead in the rear of the body (cargo compartment)
  • lowered floor in the central part of the van body
  • fog lights
  • tachograph (option)
  • three-point safety belts for the van body seats (option)
The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system
Pneumatic drive for transfer gearbox control
Pneumatic brake drive
Pneumatic drive for parking brake control
Inter-wheel differential lock of the middle and rear axles
Inter-axle differential lock in the transfer gearbox
Antilock brake system
Engine speed control function with a switch on the instrument panel
Engine starting preheater
Lead-outs for trailer
Trailer coupling
Tachograph (except for chassis and modifications without tachograph)
ERA-GLONASS system
Centralized tire inflation system (except for 6370 modifications)
Two fuel tanks (except for modifications without an additional fuel tank)
Electric heating of mirrors (only for 6370 modifications)
Electric heating of fuel filters
Electric heating of the fuel intake
Air suspension driver’s seat
Steering column with height adjustment
