URAL 63701К-4951
The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system
| Designation | 63701К-4951 |
|---|---|
| Wheel arrangement | 6x6 |
| Payload, kg | 22105 |
| Curb weight, kg | 12190 |
| GVW, kg | 34000 |
| Gross vehicle weight distribution, per front axle, kg | 8000 |
| Gross weight distribution, per rear bogie, kg | 26000 |
| Cab type | above engine, two seats |
| Sleeper | yes |
| Wheelbase, mm | 4680 |
| Net power, HP | 407 |
| Maximum RPM, min-1 | 1900 |
| Maximum torque, kgf*m | 184 |
| Engine speed at maximum torque, min-1 | 1100-1500 |
| Gearbox | FG 16JS200TA, mechanical, 16 gears |
| Transfer box | mechanical, two-speed with cylindrical lockable interaxle differential |
| Drive axles | with hub-reduction final drive, with locking of inter-wheel differentials of the bogie axles, with lockable interaxle differential in the middle axle |
| Brake drive | pneumatic |
| Total capacity of gas cylinders, L | 1120 |
| Tires | 16.00 R20 |

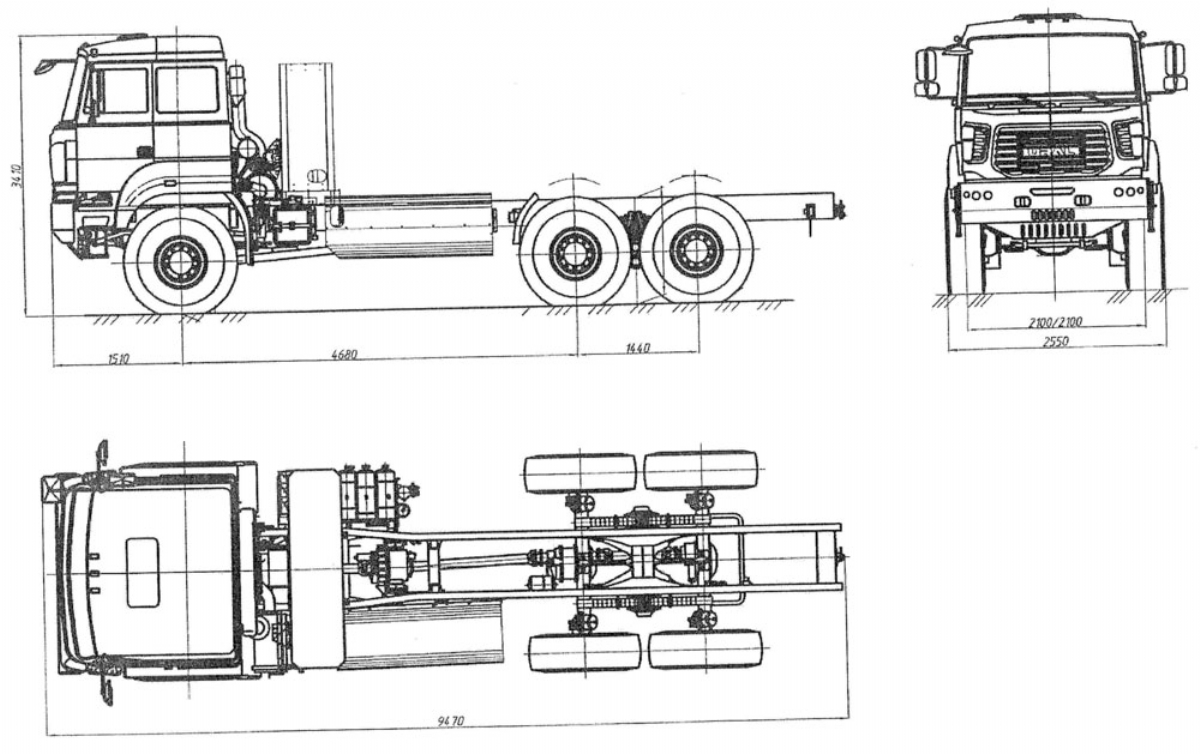

| Overall truck dimensions, mm | 9470х2550х3410 |
| Configuration |
|
| Basic configuration for 4320-6951-16 |
|---|
| The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system |
| Pneumatic drive for transfer gearbox control |
| Pneumatic brake drive |
| Pneumatic drive for parking brake control |
| Inter-wheel differential lock of the middle and rear axles |
| Inter-axle differential lock in the transfer gearbox |
| Antilock brake system |
| Function of engine speed control with a switch on the instrument panel |
| Engine starting preheater |
| Lead-outs for trailer |
| Trailer coupling |
| Tachograph (except for chassis and modifications without tachograph) |
| ERA-GLONASS system |
| Centralized tire inflation system |
| 2 DIN multimedia head unit with steering wheel control, USB support, audio system in the cab doors |
| Daytime running lights |
| Fog lights |
| Two fuel tanks (except for modifications without an additional fuel tank) |
| Electric heating of mirrors |
| Electric heating of the windshield of the cab |
| Electric windows |
| Electric heating of fuel filters |
| Electric heating of the fuel intake |
| Central locking |
| Air suspension driver’s seat |
| Steering column with tilt adjustment |
| An instrument board with the built-in CAN bus error diagnostic function |
| Multifunction steering wheel |
| Cruise-control system |
| Cabin filter |
| USB port for charging |
| Fire extinguisher |
| Basic configuration for modifications, except for 4320-6951-16 |
|---|
| The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system |
| Pneumatic drive for transfer gearbox control |
| Pneumatic brake drive |
| Pneumatic drive for parking brake control |
| Inter-wheel differential lock of the middle and rear axles |
| Inter-axle differential lock in the transfer gearbox |
| Antilock brake system |
| Function of engine speed control with a switch on the instrument panel |
| Engine starting preheater |
| Lead-outs for trailer |
| Trailer coupling |
| Tachograph (except for chassis and modifications without tachograph) |
| ERA-GLONASS system |
| Centralized tire inflation system (except for 6370 modifications) |
| Two fuel tanks (except for modifications without an additional fuel tank) |
| Electric heating of mirrors (only for 6370 modifications) |
| Electric heating of fuel filters |
| Electric heating of the fuel intake |
| Air suspension driver’s seat |
| Steering column with height adjustment |
