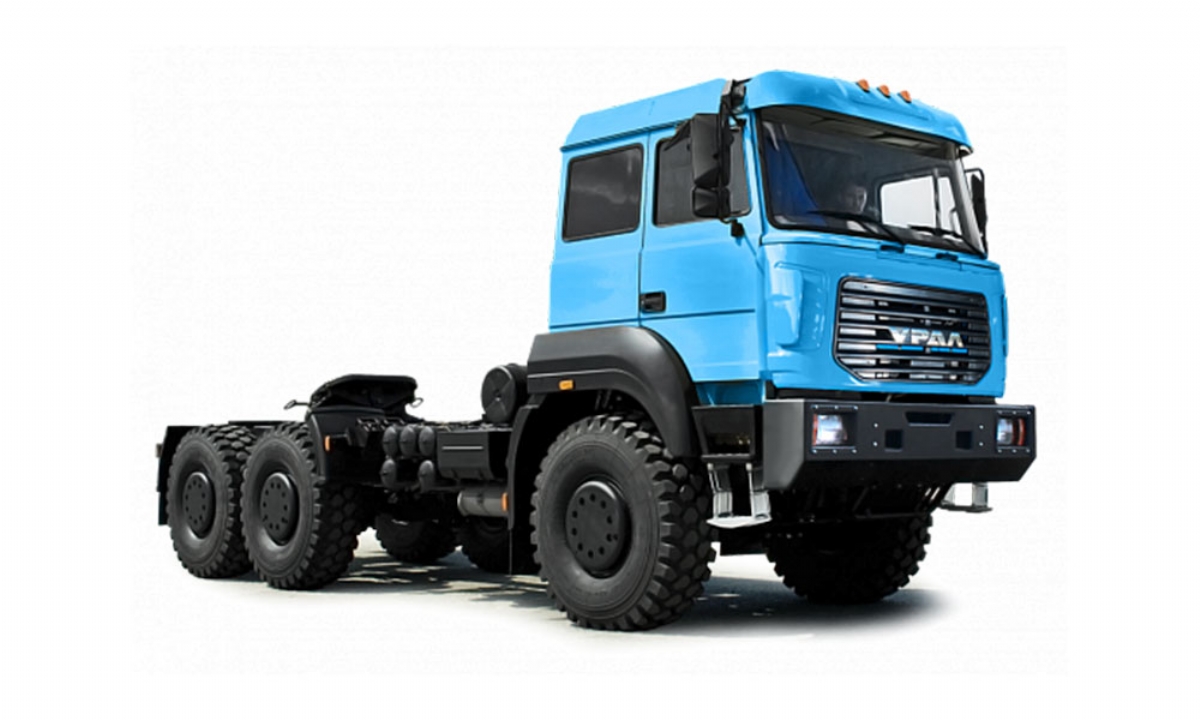

URAL 63704К-3951
The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system
| Designation | 63704К-3951 |
|---|---|
| Wheel arrangement | 6x6 |
| Load on the fifth-wheel coupling, kg | 20300 |
| Curb weight, kg | 12395 |
| GVW, kg | 34000 |
| Gross vehicle weight distribution, per front axle, kg | 8000 |
| Gross weight distribution, per rear bogie, kg | 26000 |
| Weight of the towed trailer (on roads of categories 1–4), kg | 63925 |
| Gross train weight, kg | 76000 |
| Cab type | above engine, two seats |
| Sleeper | no |
| Type of the fifth-wheel coupling, inches | 2/3,5 |
| Height of the fifth-wheel coupling (at gross weight), mm | 1550 |
| Net power, HP | 407 |
| Maximum RPM, min-1 | 1900 |
| Maximum torque, kgf*m | 184 |
| Engine speed at maximum torque, min-1 | 1100-1500 |
| Gearbox | FG 16JS200TA, mechanical, 16 gears |
| Transfer box | 2-speed, with cylindrical lockable interaxle differential |
| Drive axles | with locking of inter-wheel differentials in the middle and rear axles, with a lockable interaxle differential in the middle axle |
| Starting preheater | 15ТСГ |
| Total capacity of gas cylinders, L | 1120 |
| Maximum speed, km/h | 90 |
| Tires | 16.00 R20 |
| Overall truck dimensions, mm | 8755х2550х3300 |
| Configuration |
|
| Basic configuration for 44202 |
|---|
| The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system |
| Pneumatic drive for transfer gearbox control |
| Pneumatic brake drive |
| Pneumatic drive for parking brake control |
| Inter-wheel differential lock of the middle and rear axles |
| Inter-axle differential lock in the transfer gearbox |
| Antilock brake system |
| Engine speed control function with a switch on the instrument panel |
| Engine starting preheater |
| Lead-outs for trailer |
| Trailer coupling |
| Tachograph (except for chassis and modifications without tachograph) |
| ERA-GLONASS system |
| Centralized tire inflation system |
| 2 DIN multimedia head unit with steering wheel control, USB support, audio system in the cab doors |
| Daytime running lights |
| Fog lights |
| Two fuel tanks (except for modifications without an additional fuel tank) |
| Electric heating of mirrors |
| Electric heating of the windshield of the cab |
| Electric windows |
| Electric heating of fuel filters |
| Electric heating of the fuel intake |
| Central locking |
| Air suspension driver’s seat |
| Steering column with tilt adjustment |
| An instrument board with the built-in CAN bus error diagnostic function |
| Multifunction steering wheel |
| Cruise-control system |
| Cabin filter |
| USB port for charging |
| Fire extinguisher |
| Basic configuration for 6370 |
|---|
| The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system |
| Pneumatic drive for transfer gearbox control |
| Pneumatic brake drive |
| Pneumatic drive for parking brake control |
| Inter-wheel differential lock of the middle and rear axles |
| Inter-axle differential lock in the transfer gearbox |
| Antilock brake system |
| Engine speed control function with a switch on the instrument panel |
| Engine starting preheater |
| Lead-outs for trailer |
| Trailer coupling |
| Tachograph (except for chassis and modifications without tachograph) |
| ERA-GLONASS system |
| Centralized tire inflation system (except for 6370 modifications) |
| Two fuel tanks (except for modifications without an additional fuel tank) |
| Electric heating of mirrors (only for 6370 modifications) |
| Electric heating of fuel filters |
| Electric heating of the fuel intake |
| Air suspension driver’s seat |
| Steering column with height adjustment |
