URAL 73945-6921-01
The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system
| Designation | 73945-6921-01 |
|---|---|
| Wheel arrangement | 6x4 |
| Payload, kg | 19075 |
| Curb weight, kg | 8350 |
| GVW, kg | 27500 |
| Gross vehicle weight distribution, per front axle, kg | 7500 |
| Gross weight distribution, per rear bogie, kg | 20000 |
| Cab type | NEXT, conventional, three-seater |
| Wheelbase, mm | 4905 |
| Mounting base, mm | 5775 |
| Engine type | Diesel, 4-stroke, turbocharged, in-line |
| Displacement, lt | 6,65 |
| Net power, HP | 328 |
| Maximum RPM, min-1 | 2300 |
| Maximum torque, kgf*m | 140 |
| Engine speed at maximum torque, min-1 | 1300-1600 |
| Gearbox | ZF 9S1515, mechanical, 9 gears |
| Drive axles | ratio 5.92 with the inter-axle and inter-wheel locking |
| Brake drive | Pneumatic |
| Fuel tank capacity, liters | 350 |
| Tires | 315/80 R22,5 |

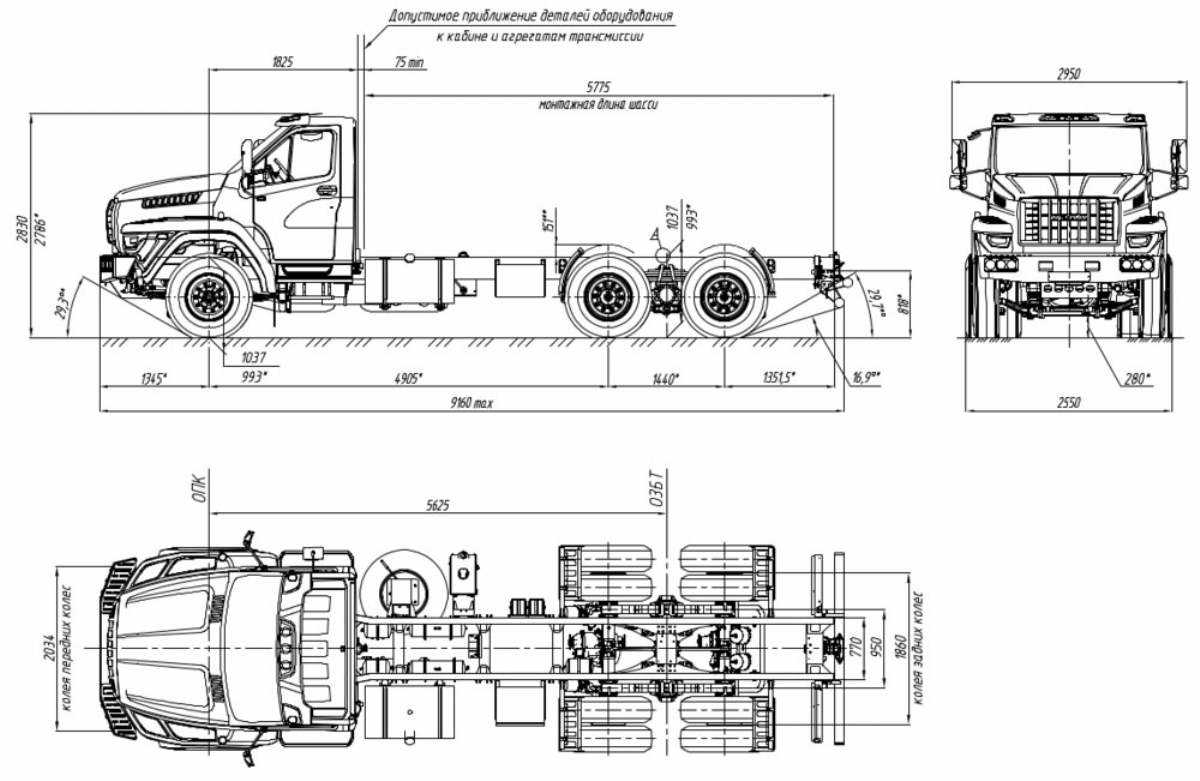

| Overall truck dimensions, mm | 9160х2950х2830 |
| Configuration |
|
| The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system |
| Pneumatic brake drive |
| Pneumatic drive for parking brake control |
| Inter-wheel differential lock of the middle and rear axles |
| Inter-axle differential lock in the transfer gearbox |
| Antilock brake system |
| Engine speed control function with a switch on the instrument panel |
| Engine starting preheater |
| Lead-outs for trailer |
| Trailer coupling |
| Tachograph (except for chassis) |
| ERA-GLONASS system |
| Cable-operated gear shift joystick |
| 2 DIN multimedia head unit with steering wheel control, USB support, audio system in the cab doors |
| Daytime running lights |
| Fog lights |
| Electric heating of mirrors |
| Electric heating of the windshield of the cab |
| Electric windows |
| Electric heating of fuel filters |
| Electric heating of the fuel intake |
| Central locking |
| Air suspension driver’s seat |
| Steering column with tilt adjustment |
| n instrument board with the built-in CAN bus error diagnostic function |
| Multifunction steering wheel |
| Cruise-control system |
| Cabin filter |
| USB port for charging |
| Fire extinguisher |
