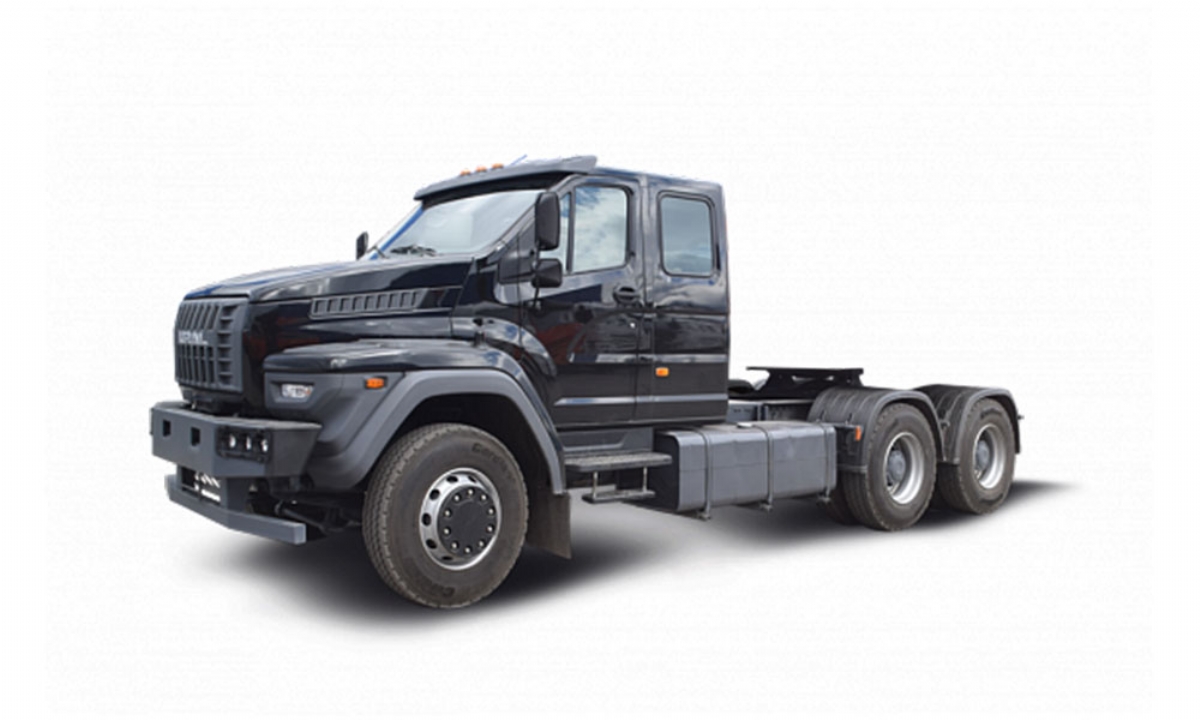

URAL 7470-5511-01
The tractor is designed for towing semi-trailers at ambient temperatures of -45 °C to +40 °C on roads of categories 1–4.
| Designation | 7470-5511-01 |
|---|---|
| Wheel arrangement | 6x4 |
| Load on the fifth-wheel coupling, kg | 16500 |
| Curb weight, kg | 9580 |
| GVW, kg | 25700 |
| Gross vehicle weight distribution, per front axle, kg | 5700 |
| Gross weight distribution, per rear bogie, kg | 20000 |
| Weight of the towed trailer (on roads of categories 1–4), kg | 52420 |
| Gross train weight, kg | 62000 |
| Cab type | NEXT, conventional, two seats, three doors |
| Type of the fifth-wheel coupling, inches | 2 |
| Height of the fifth-wheel coupling (at gross weight), mm | 1283 |
| Engine type | Diesel, 4-stroke, turbocharged, in-line |
| Displacement, lt | 11,12 |
| Net power, HP | 420 |
| Maximum RPM, min-1 | 1900 |
| Engine speed at maximum torque, min-1 | 1100-1300 |
| Gearbox | ZF 16S2225TO, mechanical, 16 gears (with cable-operated control) |
| Drive axles | with inter-wheel differential lock and interaxle differential lock in the middle axle, ratio 5.92 |
| Starting preheater | 14TS-20 |
| Fuel tank capacity, liters | 380+235 |
| Maximum speed, km/h | 90 |
| Tires | 315/80 R22,5 |
| Overall truck dimensions, mm | 8020х2550х2815 |
| Configuration |
|
| The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system |
| Pneumatic brake drive |
| Pneumatic drive for parking brake control |
| Inter-wheel differential lock of the middle and rear axles |
| Inter-axle differential lock in the transfer gearbox |
| Antilock brake system |
| Engine speed control function with a switch on the instrument panel |
| Engine starting preheater |
| Lead-outs for trailer |
| Trailer coupling |
| Tachograph (except for chassis) |
| ERA-GLONASS system |
| Cable-operated gear shift joystick |
| 2 DIN multimedia head unit with steering wheel control, USB support, audio system in the cab doors |
| Daytime running lights |
| Fog lights |
| Electric heating of mirrors |
| Electric heating of the windshield of the cab |
| Electric windows |
| Electric heating of fuel filters |
| Electric heating of the fuel intake |
| Central locking |
| Air suspension driver’s seat |
| Steering column with tilt adjustment |
| An instrument board with the built-in CAN bus error diagnostic function |
| Multifunction steering wheel |
| Cruise-control system |
| Cabin filter |
| USB port for charging |
| Fire extinguisher |
