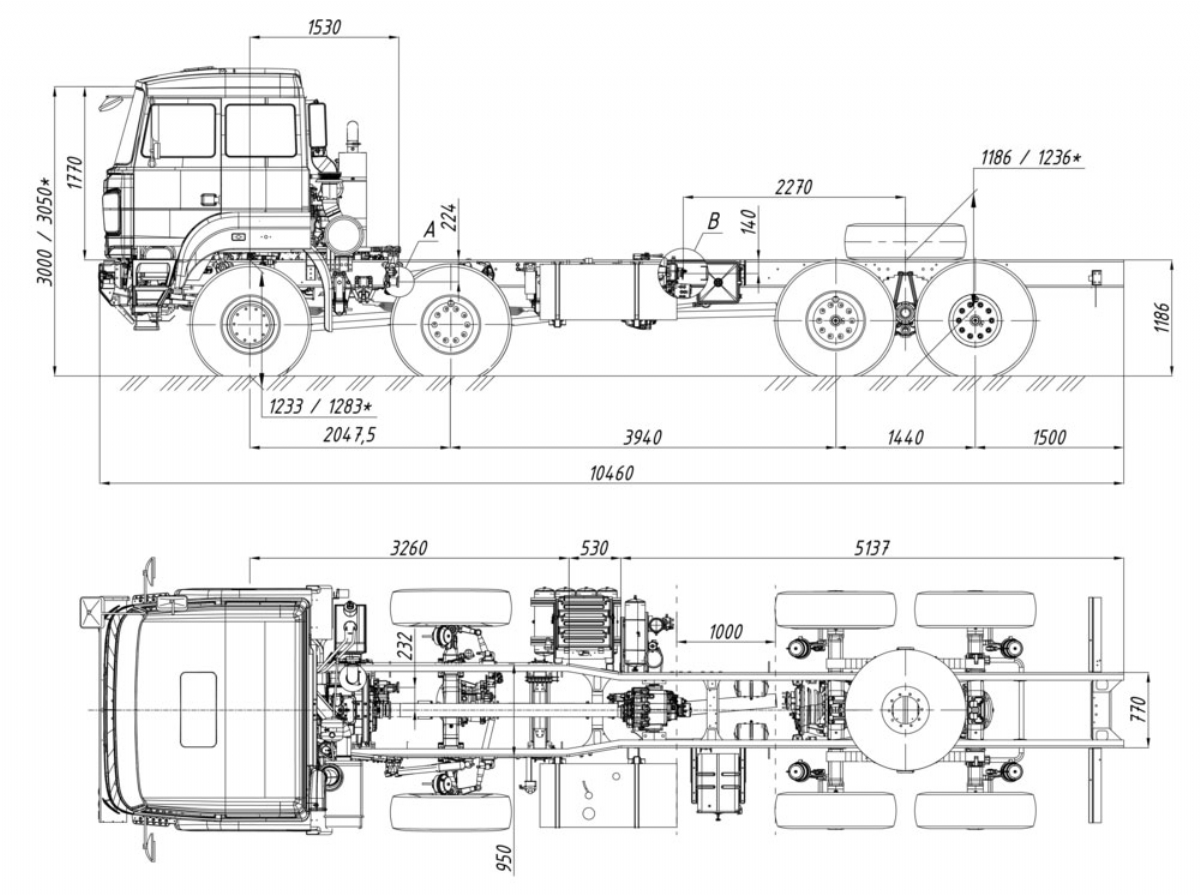

URAL 9593-1151-01
The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system
| Designation | 9593-1151-01 |
|---|---|
| Wheel arrangement | 8x8 |
| Payload, kg | 31100 |
| Curb weight, kg | 12900 |
| GVW, kg | 44000 |
| Gross vehicle weight distribution, per front axle, kg | 18000 |
| Gross vehicle weight distribution, per rear axle, kg | 26000 |
| Cab type | above engine, two seats |
| Sleeper | yes |
| Chassis type | long-wheelbase chassis |
| Engine type | Diesel, 4-stroke, turbocharged, in-line |
| Displacement, lt | 11,12 |
| Net power, HP | 420 |
| Maximum RPM, min-1 | 1900 |
| Engine speed at maximum torque, min-1 | 1100-1300 |
| Gearbox | FG 16JS200TA, mechanical, 16 gears |
| Transfer box | mechanical, two-speed with cylindrical lockable interaxle differential |
| Drive axles | with hub-reduction final drive, with locking of inter-wheel differentials of the bogie axles, with lockable interaxle differential in the middle axle |
| Brake drive | pneumatic |
| Fuel tank capacity, liters | 500 |
| Tires | 16.00 R20 |
| Configuration |
|
| The engine meets the requirements of environmental class 5 (UNECE regulation No. 49-05) with the SCR system |
| Pneumatic drive for transfer box control |
| Pneumatic brake drive |
| Pneumatic drive for parking brake control |
| Inter-wheel differential lock of the middle and rear axles |
| Inter-axle differential lock in the transfer gearbox |
| Antilock brake system |
| Engine speed control function with a switch on the instrument panel |
| Engine starting preheater |
| Lead-outs for trailer |
| Trailer coupling |
| Tachograph (except for chassis and modifications without tachograph) |
| ERA-GLONASS system |
| Centralized tire inflation system (except for 6370 modifications) |
| Two fuel tanks (except for modifications without an additional fuel tank) |
| Electric heating of mirrors (only for 6370 modifications) |
| Electric heating of fuel filters |
| Electric heating of the fuel intake |
| Air suspension driver’s seat |
| Steering column with height adjustment |
